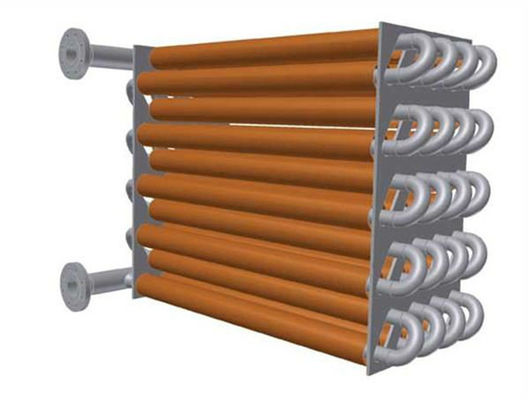

High Pressure Boiler Economizer Heat Exchanger with 3 Years Warranty and 1-20 Ton Capacity
| محل منبع | جیانگسو ، چین |
|---|---|
| نام تجاری | HDB |
| مقدار حداقل تعداد سفارش | 1 تن |
| قیمت | $45,000-50,000 / ton |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نوع | گردش طبیعی | استفاده | نیروگاه |
|---|---|---|---|
| ساختار | لوله آب | فشار | فشار |
| تولید بخار | حداکثر 20 تن/ساعت | سبک | افقی |
| خروجی | آب گرم | سوخت طراحی | سوخت زغال سنگ |
| مادی | صفحه فولادی مخصوص دیگ | نوع سوخت | گاز کک |
| وزن | 1-20 تن | فرآیند ذوب | EF+LF + VD |
| استاندارد | ASTM A388 یا EN10228 | استاندارد مواد | ASTM ، EN یا ISO |
| فرآیند | Material-> INGOT -> گرم/نورد -نورد-> عملیات حرارتی (عادی سازی+ معتدل) -> بازرسی -> ما | ||
| برجسته کردن | High Pressure Boiler Economizer,3 Years Warranty Heat Exchanger,1-20 Ton Boiler Economizer,3 Years Warranty Heat Exchanger,1-20 Ton Boiler Economizer |
||
توضیحات محصول
Heating System Quality Safety Boiler Economizer

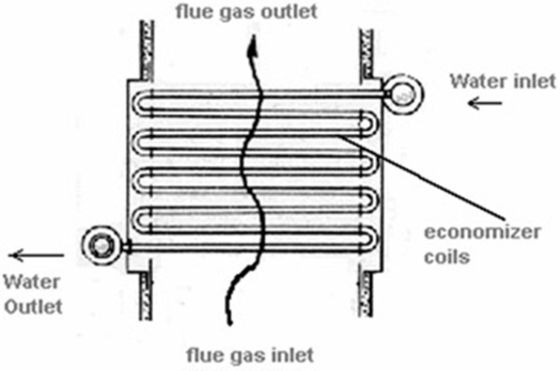

Boiler economizers are heat exchange devices with finned tubes that heat liquids (typically water) to temperatures below their boiling point. We manufacture three types of boiler economizers:
- Bare tube economizer
- H-finned tube economizer
- Spiral finned tube economizer
The H-finned tube economizer is a highly efficient heat exchanger consisting of H-finned tubes. Compared to bare tube economizers, it offers:
- Expanded heat exchange area
- Reduced number of required tubes
- Increased flue gas flow area
- Reduced flue gas flow speed and abrasion

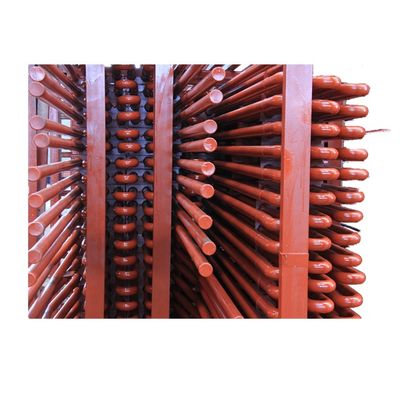

Our H-finned tubes can be manufactured as double H-finned tubes with high rigidity to accommodate long tube rows. The spiral finned economizer is our innovative design featuring spiral fin tubes to overcome abrasion issues and extend service life.
Specifications
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton Max: 1000 ton |
| Smelting Process | EF+LF+VD |
| Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+ tempering)→Inspection→rough machining→UT→2nd Heat treatment→finishing machining→Inspection |
| UT standard | ASTM A388 or EN10228, etc. |
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure boiler quality
- Hydraulic test report to verify standard working pressure and safety
